Vandetanib trifluoroacetate (ZD-6474)

别名: Vandetanib trifluoroacetate; 338992-53-3; Vandetanib (trifluoroacetate); ZD 6474 trifluoroacetate; ZD-6474 trifluoroacetate; SCHEMBL1614619; FZMIEQCEGTVFBZ-UHFFFAOYSA-N; 凡德他尼
目录号: V30853 纯度: ≥98%
Vandetanibtrifluacetate(以前也称为 ZD6474)是一种新型、高效、口服生物可利用的选择性 VEGFR2 抑制剂,在无细胞测定中 IC50 为 40 nM。
Vandetanib trifluoroacetate (ZD-6474) CAS号: 338992-53-3
产品类别: New1
产品仅用于科学研究,不针对患者销售
规格 价格
500mg
1g
Other Sizes

Other Forms of Vandetanib trifluoroacetate (ZD-6474):

  • Vandetanib-13C6
  • Vandetanib-d4 (凡德他尼 d4)
  • Vandetanib-d6 (ZD6474-d6)
  • 凡德他尼
  • 凡德他尼盐酸盐
点击了解更多
InvivoChem产品被CNS等顶刊论文引用
产品描述
Vandetanib trifluacetate(以前也称为 ZD6474)是一种新型、高效、口服生物可利用的选择性 VEGFR2 抑制剂,在无细胞测定中 IC50 为 40 nM。 Vandetanib选择性抑制血管内皮生长因子受体2(VEGF2)的酪氨酸激酶活性,从而阻断VEGF刺激的内皮细胞增殖和迁移,降低肿瘤血管通透性。 VEGFR-2 的抑制作用比 VEGFR-3 (Flt-4) 激酶的抑制作用强 2.7 倍,比 VEGFR-1 的抑制作用强 40 倍。在人脐静脉内皮细胞中,ZD6474 处理可显着抑制 VEGF 和 EGF 刺激的细胞增殖,IC50 值分别为 60 和 170 nM。
生物活性&实验参考方法
靶点
VEGFR2 (IC50 = 40 nM); VEGFR3 (IC50 = 110 nM); EGFR/HER1 (IC50 = 500 nM)
体外研究 (In Vitro)
Vandetanib 抑制 VEGFR3 和 EGFR,IC50 分别为 110 nM 和 500 nM。 Vandetanib 对 MEK、CDK2、c-Kit、erbB2、FAK、PDK1、Akt 和 IGF-1R 几乎没有作用,IC50 高于 10 μM。相反,它对 PDGFRβ、Flt1、Tie-2 和 FGFR1 不敏感。 Vandetanib 对基底内皮细胞生长影响不大,但抑制 VEGF、EGF 和 bFGF 诱导的 HUVEC 增殖,IC50 值分别为 60 nM、170 nM 和 800 nM。 vandetanib 的 IC50 范围为 2.7 μM (A549) 至 13.5 μM (Calu-6) [1],可抑制肿瘤细胞的发育。与 Cat S 抑制剂 LHVS (IC50=0.001 μM) 相比并在小鼠 B 细胞系中进行测试 (IC50=1.5±0.4 μM),odanacatib 是一种温和的抗原呈递抑制剂。与 LHVS 相比,Odanacatib 的最低抑制剂量分别为 1-10 μM 和 0.01 μM,对小鼠脾细胞中 MHC II 不变链蛋白 Iip10 的加工具有较小的抑制作用 [2]。 Vandetanib 抑制肝癌细胞中 EGFR 和 HUVEC 中 VEGFR-2 的磷酸化以及细胞分裂 [4]。
体内研究 (In Vivo)
在H1650异种移植模型中,vandetanib(15 mg/kg,po)减少肿瘤生长,IC50为3.5±1.2 μM,优于吉非替尼的抗肿瘤功效[3]。 Vandetanib(50或75 mg/kg)减少肝内转移的数量,上调肿瘤组织中的VEGF、TGF-α和EGF,增加肿瘤细胞凋亡,抑制肿瘤生长,提高荷瘤小鼠的生存率[4] 。它还抑制肿瘤组织中VEGFR-2和EGFR的磷酸化。
酶活实验
在涂有聚(Glu、Ala、Tyr)6:3:1 无规共聚物底物的 96 孔板中,将凡德他尼与酶、10 mM MnCl2 和 2 μM ATP 一起孵育。下一步是通过依次孵育 2,2'-azino-bis(3-乙基苯并噻唑啉-6-磺酸)、辣根过氧化物酶连接的绵羊抗小鼠免疫球蛋白抗体和小鼠 IgG 抗磷酸酪氨酸 4G10 抗体来鉴定磷酸化酪氨酸。为了研究对与 FGFR1、c-kit、erbB2、IGF-1R、FAK、PDGFRβ、Tie-2 和 FGFR1 相关的酪氨酸激酶的选择性,对该方法进行了修改。所有酶测定(酪氨酸或丝氨酸-苏氨酸)均使用等于或略低于相应 Km (0.2–14 μM) 的适当 ATP 浓度。使用相关闪烁邻近分析 (SPA) 在 96 孔板中研究针对丝氨酸-苏氨酸激酶(CDK2、AKT 和 PDK1)的选择性。 CDK2 检测的条件如下:10 mM MnCl2、4.5 μM ATP、0.15 μCi [γ-33 P]ATP/反应、50 mM HEPES( pH 7.5)、1 mM DTT、0.1 mM 原钒酸钠、0.1 mM 氟化钠、10 mM 甘油磷酸钠、1 mg/mL BSA 组分 V 和视网膜母细胞瘤底物(视网膜母细胞瘤基因的一部分,792-928,以谷胱甘肽 S-转移酶表达系统;0.22 μM 初始浓度)。反应在室温下进行 60 分钟,然后使用 150 μL 溶液淬灭 2 小时,该溶液含有 0.8 mg/反应的 Protein A SPA-聚乙烯甲苯珠、3 μg 兔免疫球蛋白抗谷胱甘肽 S-转移酶抗体和EDTA(62 mM 最终浓度)。之后,将板密封,在1200 xg下离心五分钟,并使用微板闪烁计数器计数三十秒。
细胞实验
MTT 测定经过修改以测量生长抑制。简而言之,细胞以每孔 2000 个细胞的密度接种在 96 孔板中后,暴露于凡德他尼或吉非替尼 72 小时。每个测定进行三次。对于每种药物,50% 抑制浓度 (IC50) 使用平均值±标准差 (SD) 计算。
动物实验
Each mouse has one million subcutaneous injections of H1650 cells, or H1650/PTEN cells (H1650 cells with a transfected PTEN gene), in its back. Mice are randomly assigned to three groups on the tenth day following injection, and they are given either vehicle, vandetanib (15 mg/kg/day), or gefitinib (15 mg/kg/day). Five times a week, once daily p.o. administrations of vehicle, vandetanib, and gefitinib are given. Body weight and tumor volume (width × width × length/2) are measured on a regular basis. The expression for tumor volumes is mean±SD. Tumor volume differences are assessed using the Student's t-test.
药代性质 (ADME/PK)
Absorption, Distribution and Excretion
Slow- peak plasma concentrations reached at a median 6 hours. On multiple dosing, Vandetanib accumulates about 8 fold with steady state reached after around 3 months.
About 69% was recovered following 21 days after a single dose of vandentanib. 44% was found in feces and 25% in urine.
Vd of about 7450 L.
Vandetanib binds to human serum albumin and a1-acid-glycoprotein with in vitro protein binding being approximately 90%. In ex vivo plasma samples from colorectal cancer patients at steady state exposure after 300 mg once daily, the mean percentage protein binding was 94%.
Within a 21-day collection period after a single dose of (14)C-vandetanib, approximately 69% was recovered with 44% in feces and 25% in urine. Excretion of the dose was slow and further excretion beyond 21 days would be expected based on the plasma half-life. Vandetanib was not a substrate of hOCT2 expressed in HEK293 cells. Vandetanib inhibits the uptake of the selective OCT2 marker substrate 14C-creatinine by HEK-OCT2 cells, with a mean IC50 of 2.1 ug/mL. This is higher than vandetanib plasma concentrations (0.81 ug/mL) observed after multiple dosing at 300 mg. Inhibition of renal excretion of creatinine by vandetanib provides an explanation for increases in plasma creatinine seen in human subjects receiving vandetanib.
Following oral administration of Caprelsa, absorption is slow with peak plasma concentrations typically achieved at a median of 6 hours, range 4-10 hours, after dosing. Vandetanib accumulates approximately 8-fold on multiple dosing with steady state achieved in approximately 3 months. Exposure to vandetanib is unaffected by food.
The protein binding of (14)C-Vandetanib in plasma of mice, rats, rabbits dogs and human was moderate, from 83 to 90%. The tissue distribution of vandetanib and/or metabolites in pigmented and non pigmented male rats after single oral dosing was slow but extensive, and consistent with the distribution pattern of a lipophilic compound. Highest concentrations of vandetanib and/or its metabolites were seen in the majority of tissues at 6-8 hours after administration. The distribution of radioactivity to brain was evident. Retention of radioactivity was seen in pigmented tissues indicating melanin affinity. A significant distribution of radioactivity was seen in milk of lactating rats and further on in the plasma of suckling pups.
For more Absorption, Distribution and Excretion (Complete) data for Vandetanib (8 total), please visit the HSDB record page.
Metabolism / Metabolites
Unchanged vandentanib and metabolites vandetanib N-oxide and N-desmethyl vandetanib were detected in plasma, urine and feces. N-desmethyl-vandetanib is primarily produced by CYP3A4, and vandetanib-N-oxide is primarily produced by flavin–containing monooxygenase enzymes FMO1 and FMO3.
The metabolism of vandetanib seemed to be similar in the toxicology species, rat and dog, as well as in mouse and human. The 2 major metabolites identified in excreta, were N-desmethyl-vandetanib and vandetanib-N-oxide. In mouse, a minor metabolite was also identified as O-desalkyl-vandetanib glucuronid. A glucuronide conjugate was also detected in human urine. Metabolism as well as biliary excretion appears to be most important for the elimination of vandetanib in preclinical species. CYP identification studies in vitro, suggest that CYP3A4 is involved in the formation of N-desmethyl-Vandetanib. vandetanib-N-oxide is formed via FMO1 and FMO3 (FMO=flavine mono-oxygenase). Both these enzymes are also found in kidney indicating that renal excretion might be contributed to the clearance of vandetanib.
Following oral dosing of (14)C-vandetanib, unchanged vandetanib and metabolites vandetanib N-oxide and N-desmethyl vandetanib were detected in plasma, urine and feces. A glucuronide conjugate was seen as a minor metabolite in excreta only. N-desmethyl-vandetanib is primarily produced by CYP3A4 and vandetanib-N-oxide by flavin-containing monooxygenase enzymes FMO1 and FMO3. N-desmethyl-vandetanib and vandetanib-N-oxide circulate at concentrations of approximately 7-17% and 1.4-2.2%, respectively, of those of vandetanib.
... In plasma, concentrations of total radioactivity were higher than vandetanib concentrations at all time points, indicating the presence of circulating metabolites. Unchanged vandetanib and 2 anticipated metabolites (N-desmethylvandetanib and vandetanib N-oxide) were detected in plasma, urine, and feces. A further trace minor metabolite (glucuronide conjugate) was found in urine and feces. ... Unchanged vandetanib and N-desmethyl and N-oxide metabolites were detected in plasma, urine, and feces.
Biological Half-Life
Median half life of 19 days.
... Caprelsa at the 300 mg dose in medullary thyroid cancer (MTC) patients /is/ characterized by a ... median plasma half-life of 19 days.
... Vandetanib was absorbed and eliminated slowly with a half life of approximately 10 days after single oral doses. ...
毒性/毒理 (Toxicokinetics/TK)
Hepatotoxicity
In large clinical trials of vandetanib, abnormalities in routine liver tests were common with serum aminotransferase elevations, occurring in up to half of patients and rising above 5 times the upper limit of normal (ULN) 2% to 5% of patients. In prelicensure trials of vandetanib in thyroid cancer, there were no reports of clinically apparent liver injury with jaundice or hepatic failure. Since approval and more wide scale use, there have been no published reports of hepatotoxicity due to vandetanib and the product label does not include discussion of hepatotoxicity. However, many of the kinase inhibitors used in cancer chemotherapy have been implicated in cases of clinically apparent liver injury which typically arises within the first 2 to 12 weeks of therapy, presenting with symptoms of fatigue, nausea and jaundice and a hepatocellular pattern of serum enzyme elevations without immunoallergic or autoimmune features. Several tyrosine kinase inhibitors (imatinib, nilotinib) have also been implicated in causing reactivation of hepatitis B.
Likelihood score: E* (unproven but suspected rare cause of clinically apparent liver injury).
Effects During Pregnancy and Lactation
◉ Summary of Use during Lactation
No information is available on the clinical use of vandetanib during breastfeeding. Because vandetanib is 90% bound to plasma proteins, the amount in milk is likely to be low. However, its half-life is 19 days and it might accumulate in the infant. The manufacturer recommends that breastfeeding be discontinued during vandetanib therapy and for 4 months after the last dose.
◉ Effects in Breastfed Infants
Relevant published information was not found as of the revision date.
◉ Effects on Lactation and Breastmilk
Relevant published information was not found as of the revision date.
Protein Binding
Protein binding of about 90%.
参考文献

[1]. ZD6474 inhibits vascular endothelial growth factor signaling, angiogenesis, and tumor growth following oral administration. Cancer Res. 2002 Aug 15;62(16):4645-55.

[2]. Interaction of the EGFR inhibitors gefitinib, vandetanib, pelitinib and neratinib with the ABCG2 multidrug transporter: implications for the emergence and reversal of cancer drug resistance. Biochem Pharmacol. 2012 Aug 1;84(3):260-7.

[3]. Vandetanib is effective in EGFR-mutant lung cancer cells with PTEN deficiency. Exp Cell Res. 2013 Feb 15;319(4):417-23.

[4]. Vandetanib, an inhibitor of VEGF receptor-2 and EGF receptor, suppresses tumor development and improves prognosis of liver cancer in mice. Clin Cancer Res. 2012 Jul 15;18(14):3924-33.

其他信息
Vandetanib is a quinazoline that is 7-[(1-methylpiperidin-4-yl)methoxy]quinazoline bearing additional methoxy and 4-bromo-2-fluorophenylamino substituents at positions 6 and 4 respectively. Used for the treatment of symptomatic or progressive medullary thyroid cancer in patients with unresectable locally advanced or metastatic disease. It has a role as a tyrosine kinase inhibitor and an antineoplastic agent. It is an aromatic ether, a secondary amine, a member of quinazolines, a member of piperidines, an organobromine compound and an organofluorine compound.
Vandetanib is an oral once-daily kinase inhibitor of tumour angiogenesis and tumour cell proliferation with the potential for use in a broad range of tumour types. On April 6 2011, vandetanib was approved by the FDA to treat nonresectable, locally advanced, or metastatic medullary thyroid cancer in adult patients.
Vandetanib is a Kinase Inhibitor. The mechanism of action of vandetanib is as a Protein Kinase Inhibitor.
Vandetanib is a Kinase Inhibitor. The mechanism of action of vandetanib is as a Protein Kinase Inhibitor, and P-Glycoprotein Inhibitor, and Organic Cation Transporter 2 Inhibitor.
Vandetanib is a multi-kinase inhibitor that is used in the therapy of advanced or metastatic medullary thyroid cancer. Vandetanib therapy is commonly associated with transient elevations in serum aminotransferase during therapy, but has not been linked to cases of clinically apparent acute liver injury with jaundice.
Vandetanib is an orally bioavailable 4-anilinoquinazoline. Vandetanib selectively inhibits the tyrosine kinase activity of vascular endothelial growth factor receptor 2 (VEGFR2), thereby blocking VEGF-stimulated endothelial cell proliferation and migration and reducing tumor vessel permeability. This agent also blocks the tyrosine kinase activity of epidermal growth factor receptor (EGFR), a receptor tyrosine kinase that mediates tumor cell proliferation and migration and angiogenesis.
Drug Indication
Vandetanib is currently approved as an alternative to local therapies for both unresectable and disseminated disease. Because Vandetanib can prolong the Q-T interval, it is contraindicated for use in patients with serious cardiac complications such as congenital long QT syndrome and uncompensated heart failure.
FDA Label
Caprelsa is indicated for the treatment of aggressive and symptomatic medullary thyroid cancer (MTC) in patients with unresectable locally advanced or metastatic disease. Caprelsa is indicated in adults, children and adolescents aged 5 years and older. For patients in whom re-arranged-during-transfection(RET) mutation is not known or is negative, a possible lower benefit should be taken into account before individual treatment decision.
Treatment of medullary thyroid carcinoma
Mechanism of Action
ZD-6474 is a potent and selective inhibitor of VEGFR (vascular endothelial growth factor receptor), EGFR (epidermal growth factor receptor) and RET (REarranged during Transfection) tyrosine kinases. VEGFR- and EGFR-dependent signalling are both clinically validated pathways in cancer, including non-small-cell lung cancer (NSCLC). RET activity is important in some types of thyroid cancer, and early data with vandetanib in medullary thyroid cancer has led to orphan-drug designation by the regulatory authorities in the USA and EU.
In vitro, vandetanib inhibited epidermal growth factor (EGF)-stimulated receptor tyrosine kinase phosphorylation in tumor cells and endothelial cells and VEGF-stimulated tyrosine kinase phosphorylation in endothelial cells.
In vitro studies have shown that vandetanib inhibits the tyrosine kinase activity of the EGFR and VEGFR families, RET, BRK, TIE2, and members of the EPH receptor and Src kinase families. These receptor tyrosine kinases are involved in both normal cellular function and pathologic processes such as oncogenesis, metastasis, tumor angiogenesis, and maintenance of the tumor microenvironment. In addition, the N-desmethyl metabolite of the drug, representing 7 to 17.1% of vandetanib exposure, has similar inhibitory activity to the parent compound for VEGF receptors (KDR and Flt-1) and EGFR.
Oncogenic conversion of the RET /rearranged during transfection/ tyrosine kinase is a frequent feature of medullary thyroid carcinoma (MTC). Vandetanib is an ATP-competitive inhibitor of RET, epidermal growth factor receptor (EGFR), and vascular endothelial growth factor receptors kinases. In this study, vandetanib mechanism of action in TT and MZ-CRC-1 human MTC cell lines, carrying cysteine 634 to tryptophan (C634W) and methionine 918 to threonine (M918T) RET mutation respectively /were studied/. Vandetanib blunted MTC cell proliferation and RET, Shc and p44/p42 mitogen-activated protein kinase (MAPK) phosphorylation. Single receptor knockdown by RNA interference showed that MTC cells depended on RET for proliferation. Adoptive expression of the vandetanib-resistant V804M RET mutant rescued proliferation of TT cells under vandetanib treatment, showing that RET is a key vandetanib target in these MTC cells. Upon RET inhibition, adoptive stimulation of EGFR partially rescued TT cell proliferation, MAPK signaling, and expression of cell-cycle-related genes. This suggests that simultaneous inhibition of RET and EGFR by vandetanib may overcome the risk of MTC cells to escape from RET blockade through compensatory over-activation of EGFR.
Rearranged during transfection (RET) is widely expressed in neuroblastoma (NB) and partly contributes to high metastatic potential and survival of NB. The aim of the present study was to investigate whether vandetanib (a RET inhibitor) inhibits proliferation, migration and invasion of NB cells in vitro. The effects of vandetanib on the proliferation, apoptosis and cell cycle and on RET phosphorylation of SK-N-SH and SH-SY5Y cells were evaluated in vitro. The migration and invasion potential of vandetanib-treated NB cells were analyzed using Transwell cell migration and invasion assays, respectively. qPCR, western blotting and immunofluorescence were used to detect mRNA and protein levels in NB cells treated with vandetanib. Our data demonstrated that vandetanib inhibits the proliferation of SK-N-SH and SH-SY5Y cells and that this inhibition is mediated by the induction of G1 phase cell cycle arrest at lower concentrations and by apoptosis at higher concentrations. In the presence of vandetanib, the migration and invasion of two NB cell lines were markedly decreased compared with the control group (p<0.01). In addition, our data showed that the levels of C-X-C chemokine receptor type 4 (CXCR4) and matrix metalloproteinase 14 (MMP14) mRNA expression in NB cell lines treated with vandetanib were significantly lower than those in the cells that were treated with vehicle (p<0.01) and similar results were obtained for protein levels as determined by western blotting and immunofluorescence analysis. Vandetanib may inhibit the proliferation, migration and invasion of NB cells in vitro. The potential mechanisms for the inhibition of NB migration and invasion by vandetanib may partly be attributed to the ability of vandetanib to suppress the expression of CXCR4 and MMP14 in human NB cells.
For more Mechanism of Action (Complete) data for Vandetanib (6 total), please visit the HSDB record page.
*注: 文献方法仅供参考, InvivoChem并未独立验证这些方法的准确性
化学信息 & 存储运输条件
分子式
C22H24N4O2FBR.C2HO2F3
分子量
589.3773
精确质量
588.099
CAS号
338992-53-3
相关CAS号
Vandetanib;443913-73-3;Vandetanib hydrochloride;524722-52-9;Vandetanib-d6;1174683-49-8
PubChem CID
17973223
外观&性状
Typically exists as solid at room temperature
沸点
608.2±0.0 °C at 760 mmHg
闪点
321.6±0.0 °C
蒸汽压
0.0±0.0 mmHg at 25°C
LogP
6.74
tPSA
96.8
氢键供体(HBD)数目
2
氢键受体(HBA)数目
12
可旋转键数目(RBC)
6
重原子数目
37
分子复杂度/Complexity
623
定义原子立体中心数目
0
InChi Key
FZMIEQCEGTVFBZ-UHFFFAOYSA-N
InChi Code
InChI=1S/C22H24BrFN4O2.C2HF3O2/c1-28-7-5-14(6-8-28)12-30-21-11-19-16(10-20(21)29-2)22(26-13-25-19)27-18-4-3-15(23)9-17(18)24;3-2(4,5)1(6)7/h3-4,9-11,13-14H,5-8,12H2,1-2H3,(H,25,26,27);(H,6,7)
化学名

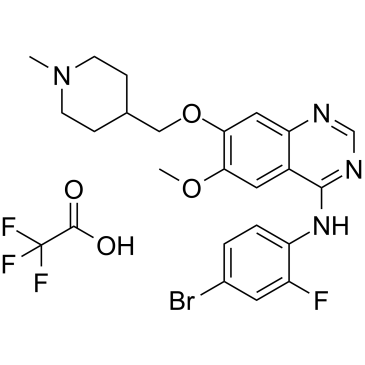

N-(4-bromo-2-fluorophenyl)-6-methoxy-7-[(1-methylpiperidin-4-yl)methoxy]quinazolin-4-amine;2,2,2-trifluoroacetic acid
别名
Vandetanib trifluoroacetate; 338992-53-3; Vandetanib (trifluoroacetate); ZD 6474 trifluoroacetate; ZD-6474 trifluoroacetate; SCHEMBL1614619; FZMIEQCEGTVFBZ-UHFFFAOYSA-N;
HS Tariff Code
2934.99.9001
存储方式

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

运输条件
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
溶解度数据
溶解度 (体外实验)
May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples
溶解度 (体内实验)
注意: 如下所列的是一些常用的体内动物实验溶解配方,主要用于溶解难溶或不溶于水的产品(水溶度<1 mg/mL)。 建议您先取少量样品进行尝试,如该配方可行,再根据实验需求增加样品量。

注射用配方
(IP/IV/IM/SC等)
注射用配方1: DMSO : Tween 80: Saline = 10 : 5 : 85 (如: 100 μL DMSO 50 μL Tween 80 850 μL Saline)
*生理盐水/Saline的制备:将0.9g氯化钠/NaCl溶解在100 mL ddH ₂ O中,得到澄清溶液。
注射用配方 2: DMSO : PEG300Tween 80 : Saline = 10 : 40 : 5 : 45 (如: 100 μL DMSO 400 μL PEG300 50 μL Tween 80 450 μL Saline)
注射用配方 3: DMSO : Corn oil = 10 : 90 (如: 100 μL DMSO 900 μL Corn oil)
示例: 注射用配方 3 (DMSO : Corn oil = 10 : 90) 为例说明, 如果要配制 1 mL 2.5 mg/mL的工作液, 您可以取 100 μL 25 mg/mL 澄清的 DMSO 储备液,加到 900 μL Corn oil/玉米油中, 混合均匀。
View More

注射用配方 4: DMSO : 20% SBE-β-CD in Saline = 10 : 90 [如:100 μL DMSO 900 μL (20% SBE-β-CD in Saline)]
*20% SBE-β-CD in Saline的制备(4°C,储存1周):将2g SBE-β-CD (磺丁基-β-环糊精) 溶解于10mL生理盐水中,得到澄清溶液。
注射用配方 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (如: 500 μL 2-Hydroxypropyl-β-cyclodextrin (羟丙基环胡精) 500 μL Saline)
注射用配方 6: DMSO : PEG300 : Castor oil : Saline = 5 : 10 : 20 : 65 (如: 50 μL DMSO 100 μL PEG300 200 μL Castor oil 650 μL Saline)
注射用配方 7: Ethanol : Cremophor : Saline = 10: 10 : 80 (如: 100 μL Ethanol 100 μL Cremophor 800 μL Saline)
注射用配方 8: 溶解于Cremophor/Ethanol (50 : 50), 然后用生理盐水稀释。
注射用配方 9: EtOH : Corn oil = 10 : 90 (如: 100 μL EtOH 900 μL Corn oil)
注射用配方 10: EtOH : PEG300Tween 80 : Saline = 10 : 40 : 5 : 45 (如: 100 μL EtOH 400 μL PEG300 50 μL Tween 80 450 μL Saline)


口服配方
口服配方 1: 悬浮于0.5% CMC Na (羧甲基纤维素钠)
口服配方 2: 悬浮于0.5% Carboxymethyl cellulose (羧甲基纤维素)
示例: 口服配方 1 (悬浮于 0.5% CMC Na)为例说明, 如果要配制 100 mL 2.5 mg/mL 的工作液, 您可以先取0.5g CMC Na并将其溶解于100mL ddH2O中,得到0.5%CMC-Na澄清溶液;然后将250 mg待测化合物加到100 mL前述 0.5%CMC Na溶液中,得到悬浮液。
View More

口服配方 3: 溶解于 PEG400 (聚乙二醇400)
口服配方 4: 悬浮于0.2% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 5: 溶解于0.25% Tween 80 and 0.5% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 6: 做成粉末与食物混合


注意: 以上为较为常见方法,仅供参考, InvivoChem并未独立验证这些配方的准确性。具体溶剂的选择首先应参照文献已报道溶解方法、配方或剂型,对于某些尚未有文献报道溶解方法的化合物,需通过前期实验来确定(建议先取少量样品进行尝试),包括产品的溶解情况、梯度设置、动物的耐受性等。

请根据您的实验动物和给药方式选择适当的溶解配方/方案:
1、请先配制澄清的储备液(如:用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液,按从左到右的顺序依次添加助溶剂,澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明,并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中,混合均匀/澄清;向上述体系中加入50 μL Tween-80,混合均匀/澄清;然后继续加入450 μL ddH2O (或 saline)定容至 1 mL;

3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出,可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果,工作液请现配现用!
6、如不确定怎么将母液配置成体内动物实验的工作液,请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
制备储备液 1 mg 5 mg 10 mg
1 mM 1.6967 mL 8.4835 mL 16.9670 mL
5 mM 0.3393 mL 1.6967 mL 3.3934 mL
10 mM 0.1697 mL 0.8483 mL 1.6967 mL

1、根据实验需要选择合适的溶剂配制储备液 (母液):对于大多数产品,InvivoChem推荐用DMSO配置母液 (比如:5、10、20mM或者10、20、50 mg/mL浓度),个别水溶性高的产品可直接溶于水。产品在DMSO 、水或其他溶剂中的具体溶解度详见上”溶解度 (体外)”部分;

2、如果您找不到您想要的溶解度信息,或者很难将产品溶解在溶液中,请联系我们;

3、建议使用下列计算器进行相关计算(摩尔浓度计算器、稀释计算器、分子量计算器、重组计算器等);

4、母液配好之后,将其分装到常规用量,并储存在-20°C或-80°C,尽量减少反复冻融循环。

计算器

摩尔浓度计算器可计算特定溶液所需的质量、体积/浓度,具体如下:

  • 计算制备已知体积和浓度的溶液所需的化合物的质量
  • 计算将已知质量的化合物溶解到所需浓度所需的溶液体积
  • 计算特定体积中已知质量的化合物产生的溶液的浓度
使用摩尔浓度计算器计算摩尔浓度的示例如下所示:
假如化合物的分子量为350.26 g/mol,在5mL DMSO中制备10mM储备液所需的化合物的质量是多少?
  • 在分子量(MW)框中输入350.26
  • 在“浓度”框中输入10,然后选择正确的单位(mM)
  • 在“体积”框中输入5,然后选择正确的单位(mL)
  • 单击“计算”按钮
  • 答案17.513 mg出现在“质量”框中。以类似的方式,您可以计算体积和浓度。

稀释计算器可计算如何稀释已知浓度的储备液。例如,可以输入C1、C2和V2来计算V1,具体如下:

制备25毫升25μM溶液需要多少体积的10 mM储备溶液?
使用方程式C1V1=C2V2,其中C1=10mM,C2=25μM,V2=25 ml,V1未知:
  • 在C1框中输入10,然后选择正确的单位(mM)
  • 在C2框中输入25,然后选择正确的单位(μM)
  • 在V2框中输入25,然后选择正确的单位(mL)
  • 单击“计算”按钮
  • 答案62.5μL(0.1 ml)出现在V1框中
g/mol

分子量计算器可计算化合物的分子量 (摩尔质量)和元素组成,具体如下:

注:化学分子式大小写敏感:C12H18N3O4  c12h18n3o4
计算化合物摩尔质量(分子量)的说明:
  • 要计算化合物的分子量 (摩尔质量),请输入化学/分子式,然后单击“计算”按钮。
分子质量、分子量、摩尔质量和摩尔量的定义:
  • 分子质量(或分子量)是一种物质的一个分子的质量,用统一的原子质量单位(u)表示。(1u等于碳-12中一个原子质量的1/12)
  • 摩尔质量(摩尔重量)是一摩尔物质的质量,以g/mol表示。
/

配液计算器可计算将特定质量的产品配成特定浓度所需的溶剂体积 (配液体积)

  • 输入试剂的质量、所需的配液浓度以及正确的单位
  • 单击“计算”按钮
  • 答案显示在体积框中
动物体内实验配方计算器(澄清溶液)
第一步:请输入基本实验信息(考虑到实验过程中的损耗,建议多配一只动物的药量)
第二步:请输入动物体内配方组成(配方适用于不溶/难溶于水的化合物),不同的产品和批次配方组成不同,如对配方有疑问,可先联系我们提供正确的体内实验配方。此外,请注意这只是一个配方计算器,而不是特定产品的确切配方。
+
+
+

计算结果:

工作液浓度 mg/mL;

DMSO母液配制方法 mg 药物溶于 μL DMSO溶液(母液浓度 mg/mL)。如该浓度超过该批次药物DMSO溶解度,请首先与我们联系。

体内配方配制方法μL DMSO母液,加入 μL PEG300,混匀澄清后加入μL Tween 80,混匀澄清后加入 μL ddH2O,混匀澄清。

(1) 请确保溶液澄清之后,再加入下一种溶剂 (助溶剂) 。可利用涡旋、超声或水浴加热等方法助溶;
            (2) 一定要按顺序加入溶剂 (助溶剂) 。

临床试验信息
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT01496313 Active
Recruiting
Drug: 300mg vandetanib
Drug: 150mg vandetanib
Thyroid Cancer Genzyme, a Sanofi Company/td> August 28, 2012 Phase 4
NCT01582191 Active
Recruiting
Drug: Vandetanib
Drug: Everolimus
Advanced Malignant Neoplasm
Metastatic Malignant Neoplasm
M.D. Anderson Cancer Center May 14, 2012 Phase 1
NCT00537095 Active
Recruiting
Drug: Vandetanib
Other: Placebo
Thyroid Neoplasms Genzyme, a Sanofi Company September 29, 2007 Phase 2
NCT04211337 Active
Recruiting
Drug: Selpercatinib
Drug: Vandetanib
Medullary Thyroid Cancer Loxo Oncology, Inc. February 11, 2020 Phase 3
NCT00410761 Active
Recruiting
Drug: ZD6474
(Vandetanib)
Thyroid Cancer Genzyme, a Sanofi Company November 30, 2006 Phase 3
