NS2B/NS3-IN-8

Zika virus NS2B-NS3 protease

在这项工作中，研究人员阐明了基于苯并[d]噻唑的变构NS2B/NS3抑制剂的新的构效关系。他们开发了一系列新的y形抑制剂，其具有更大的疏水接触面，应该结合到以前未定位的变弹性NS2B/NS3结合口袋区域。通过支架跳跃，研究人员改变了苯并[d]噻唑核心，并确定苯并呋喃作为一种新的先导支架，将最初靶向zikv抑制剂的选择性转移到对DENV蛋白酶的更高活性。此外，研究人员能够通过随后的抑制剂截断将配体效率从0.27提高到0.41，并鉴定出N-（5,6-二羟基苯并[d]噻唑-2-基）-4-碘苯酰胺是一种新型亚微摩尔NS2B/NS3抑制剂。利用基于细胞的分析，研究人员可以证明纤维素中的抗病毒活性。总的来说，研究人员报道了一系列新的亚微摩尔变构DENV和ZIKV抑制剂，在细胞毒性和蛋白酶抑制选择性方面具有良好的疗效。［1］

荧光测定[1]
通过基于荧光底物或基于fret底物的测定来确定化合物对蛋白酶的抑制活性。抑制剂和底物作为原液在DMSO中制备。使用Tecan Infinite F2000 PRO读板仪在96孔白色平底微滴板上测量荧光。测量至少在三个独立的实验中进行。每孔的总容积为200µL，包括180µL缓冲液、5µL酶溶液、10µL DMSO或纯DMSO抑制剂作为对照，以及5µL相应底物溶液。抑制剂浓度为20µM时进行初始筛选。采用0.01µM ~ 100µM稀释系列测定IC50值。在25°C下，用相应的激发和发射波长每30 s测量一次荧光，持续10 min。通过将剩余酶活性拟合到四参数IC50方程中，用GraFit计算IC50值，其中Y [ΔF/min]为底物水解速率，Ymax为剂量-响应曲线的最大值，在抑制剂浓度[I] = 0µM时测量，Ymin为最小值，在高抑制剂浓度下获得，s为Hill系数。

复制分析和荧光素酶测定[1]
荧光素酶活性定量测定ZIKV和DENV2 RNA复制，如前所述。68,69简单地说，将Huh7细胞通过胰蛋白酶化制备单细胞悬液，用磷酸盐缓冲盐水洗涤一次。细胞以1 × 10~7个细胞/ mL的浓度重悬于含有2 mM ATP和5 mM谷胱甘肽的细胞液中。将10 μg体外转录的RNA与400 μL细胞悬浮液（4x10~6个细胞）混合，在975 μF、270 v的间隙宽度为0.4 cm的培养皿中，用Gene Pulser系统进行电穿孔转染。细胞在12孔板上的双孔中接种：时间点为4h和24h 500µL，时间点为48h， 72h和96h 1 mL。电穿孔后4 h，细胞用10µM化合物或等量DMSO作为对照，在添加15mm HEPES的培养基中处理。48 h后补充含化合物或dmso的培养基。在电穿孔后4、24、48、72和96 h，分别加入250µL荧光素酶裂解缓冲液(0.1% （v/v) TritonX-100, 25 mM甘氨酸，15 mM MgSO4, 15 mM K3PO4 pH 7.8, 4 mM EGTA, 10% （v/v）甘油和1 mM DTT）裂解细胞。为了检测豚鼠荧光素酶的活性，将100 μL裂解液与200 μL荧光素酶缓冲液（25 mM甘氨酸、15 mM MgSO4、15 mM K3PO4 pH 7.8和4 mM EGTA）混合，并添加14或28 nM coelanterazine （P.J.K）。为了检测萤火虫荧光素酶的活性，将100 μL裂解液与350 μL荧光素酶测定缓冲液混合，新鲜添加1 mM DTT和2 mM ATP，并将d-荧光素底物（200 μ M d-荧光素，p.j k）混合在25 mM甘氨酸中。

---

细胞活力测定[1]
为了确定化合物处理对细胞活力的影响，将Huh7细胞以每孔4 × 10~3个细胞的密度接种于白壁96孔板中，接种后1天，细胞分别用1.25、2.5、5、10、20和40µM化合物或同等体积的DMSO处理96小时。按照制造商的说明，使用CellTiter-Glo发光细胞活力测定法测量细胞活力。用平板光度计测定细胞活力，并将值归一化到未处理的细胞。

[1]. SAR of novel benzothiazoles targeting an allosteric pocket of DENV and ZIKV NS2B/NS3 proteases. Bioorg Med Chem. 2021 Oct 1;47:116392.

In recent years, dengue virus (DENV) and Zika virus (ZIKV), both mosquito-borne members of the Flaviviridae family, have emerged as intercontinental health issues since their vectors have spread from their tropical origins to temperate climate zones due to climate change and increasing globalization. DENV and ZIKV are positive-sense, single-stranded RNA viruses, whose genomes consist of three structural (capsid, membrane precursor, envelope) and seven non-structural (NS) proteins, all of which are initially expressed as a single precursor polyprotein. For virus maturation, the polyprotein processing is accomplished by host proteases and the viral NS2B/NS3 protease complex, whose inhibitors have been shown to be effective antiviral agents with loss of viral pathogenicity.[1]

---

In this work, we have optimized allosteric inhibitors for the DENV2 and ZIKV NS2B/NS3 proteases. Hereby, we found new lead structures with good inhibitory properties. By exchanging the individual moieties of the lead structures 1a,b, different series of inhibitors were synthesized and investigated regarding their inhibitory effects on the NS2B/NS3 proteases of DENV2 and ZIKV. Replacing the amino acid linker with (R/S)-alanine (8a,b), isoleucine (8c), tert-leucine (8d), phenylalanine (8e), tyrosine (12a), and aspartic acid (12b) did not significantly improve the inhibitory effect. Nevertheless, the ZIKV protease was inhibited by the compounds 8a–f and 12a in the low micromolar range (IC50 = 2.13–6.48 µM). In the series of newly designed Y-shaped inhibitors (Table 2), 2,2-diphenylacetic acid derivate 23b was the most promising compound with a sub-micromolar IC50 for ZIKV (0.95 µM). Y-shaped compounds 23b and 20b as well as AA-based compounds with hydrophobic side chains 8c–f demonstrated with IC50 values in the low micromolar range that addressing both binding subsites with Y-shaped inhibitors is a promising strategy for further improvement. By truncating the inhibitor scaffold (Table 3), we were able for the first time to achieve inhibition in the low micromolar range for the DENV2 protease and simultaneously increased the ligand efficacy to obtain new starting points for further DENV2 drug discovery. The iodine-substituted inhibitor 25b was the most promising compound of this series with an IC50 of 4.38 µM for DENV2 and a sub-micromolar IC50 of 0.67 µM for ZIKV, respectively. By exchanging the benzo[d]thiazole core heterocycle, we could show that other heteroaromatic systems can serve as scaffolds besides benzo[d]thiazoles. In this SAR series, the benzofuran derivate 34e showed the best inhibitory properties (IC50(DENV2) = 0.69 µM, IC50(ZIKV) = 1.04 µM). In contrast to the benzo[d]thiazole-based compounds, 34e inhibits both the ZIKV and the DENV2 NS2B/NS3 proteases in the same order of magnitude. Screening of selected compounds against various serine and cysteine proteases demonstrated excellent off-target selectivity of our inhibitors. The most potent inhibitors and their respective methoxy prodrugs were administered in a cell-based assay for their antiviral potential to interfere with DENV2 and ZIKV replication. The compounds 22b, 23b, and 25b highlighted their antiviral potential by significantly attenuating DENV2 replication, whereas 25b and 34e showed reduced ZIKV replication. In summary, we identified two promising compounds that resemble suitable starting points for upcoming drug development. First, N-(5,6-dihydroxybenzo[d]thiazol-2-yl)-4-iodobenzamide (25b) and second, 5,6-dihydroxy-N-phenylbenzofuran-2-carboxamide (34e), both of them containing only 20 and 21 heavy atoms, respectively, and with ligand efficiencies above 0.4 are good starting points for further NS2B/NS3 inhibitor development.[1]

C17H13N3O2S

323.37

323.072

1021221-94-2

45283583

White to off-white solid powder

4.3

96.3

1

5

2

23

463

0

O1C2=CC=CC=C2C=C1C(NC1=NC2=NC(C)=CC(C)=C2S1)=O

MIATZSYTBCVGSR-UHFFFAOYSA-N

InChI=1S/C17H13N3O2S/c1-9-7-10(2)18-15-14(9)23-17(19-15)20-16(21)13-8-11-5-3-4-6-12(11)22-13/h3-8H,1-2H3,(H,18,19,20,21)

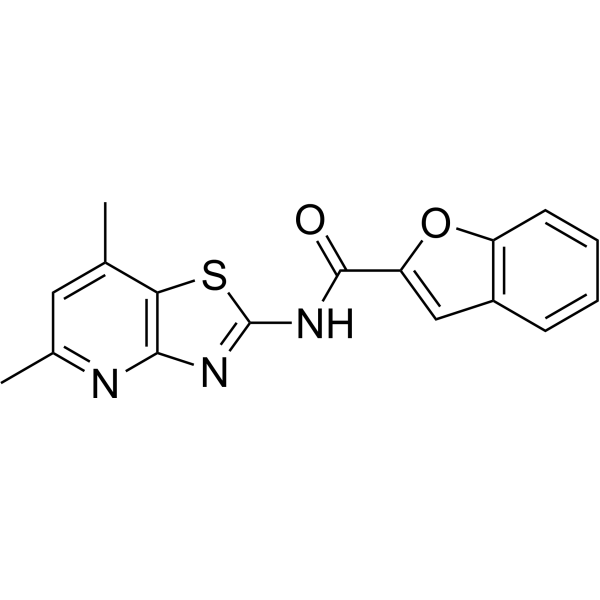

N-(5,7-dimethyl-[1,3]thiazolo[4,5-b]pyridin-2-yl)-1-benzofuran-2-carboxamide

NS2B/NS3-IN-8; 1021221-94-2; N-(5,7-dimethylthiazolo[4,5-b]pyridin-2-yl)benzofuran-2-carboxamide; N-(5,7-dimethyl-[1,3]thiazolo[4,5-b]pyridin-2-yl)-1-benzofuran-2-carboxamide; N-{5,7-dimethyl-[1,3]thiazolo[4,5-b]pyridin-2-yl}-1-benzofuran-2-carboxamide;

2934.99.9001

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

注意: 如下所列的是一些常用的体内动物实验溶解配方，主要用于溶解难溶或不溶于水的产品（水溶度<1 mg/mL）。 建议您先取少量样品进行尝试，如该配方可行，再根据实验需求增加样品量。

---

注射用配方1: DMSO : Tween 80： Saline = 10 : 5 : 85 (如： 100 μL DMSO → 50 μL Tween 80 → 850 μL Saline)
*生理盐水/Saline的制备：将0.9g氯化钠/NaCl溶解在100 mL ddH ₂ O中，得到澄清溶液。
注射用配方 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL DMSO → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)
注射用配方 3: DMSO : Corn oil = 10 : 90 (如： 100 μL DMSO → 900 μL Corn oil)
示例: 以注射用配方 3 (DMSO : Corn oil = 10 : 90) 为例说明, 如果要配制 1 mL 2.5 mg/mL的工作液, 您可以取 100 μL 25 mg/mL 澄清的 DMSO 储备液，加到 900 μL Corn oil/玉米油中, 混合均匀。

View More

注射用配方 4: DMSO : 20% SBE-β-CD in Saline = 10 : 90 [如：100 μL DMSO → 900 μL (20% SBE-β-CD in Saline)]
*20% SBE-β-CD in Saline的制备（4°C，储存1周）：将2g SBE-β-CD (磺丁基-β-环糊精) 溶解于10mL生理盐水中，得到澄清溶液。
注射用配方 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (如： 500 μL 2-Hydroxypropyl-β-cyclodextrin (羟丙基环胡精)→ 500 μL Saline)
注射用配方 6: DMSO : PEG300 : Castor oil : Saline = 5 : 10 : 20 : 65 (如： 50 μL DMSO → 100 μL PEG300 → 200 μL Castor oil → 650 μL Saline)
注射用配方 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (如： 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline)
注射用配方 8: 溶解于Cremophor/Ethanol (50 : 50), 然后用生理盐水稀释。
注射用配方 9: EtOH : Corn oil = 10 : 90 (如： 100 μL EtOH → 900 μL Corn oil)
注射用配方 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL EtOH → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)

---

口服配方 1: 悬浮于0.5% CMC Na (羧甲基纤维素钠)
口服配方 2: 悬浮于0.5% Carboxymethyl cellulose (羧甲基纤维素)
示例: 以口服配方 1 (悬浮于 0.5% CMC Na)为例说明, 如果要配制 100 mL 2.5 mg/mL 的工作液, 您可以先取0.5g CMC Na并将其溶解于100mL ddH2O中，得到0.5%CMC-Na澄清溶液；然后将250 mg待测化合物加到100 mL前述 0.5%CMC Na溶液中，得到悬浮液。

View More

口服配方 3: 溶解于 PEG400 (聚乙二醇400)
口服配方 4: 悬浮于0.2% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 5: 溶解于0.25% Tween 80 and 0.5% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 6: 做成粉末与食物混合

---

注意: 以上为较为常见方法，仅供参考， InvivoChem并未独立验证这些配方的准确性。具体溶剂的选择首先应参照文献已报道溶解方法、配方或剂型，对于某些尚未有文献报道溶解方法的化合物，需通过前期实验来确定（建议先取少量样品进行尝试），包括产品的溶解情况、梯度设置、动物的耐受性等。

---

请根据您的实验动物和给药方式选择适当的溶解配方/方案：
1、请先配制澄清的储备液(如：用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液，按从左到右的顺序依次添加助溶剂，澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明，并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀/澄清；向上述体系中加入50 μL Tween-80，混合均匀/澄清；然后继续加入450 μL ddH2O (或 saline)定容至 1 mL；
3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出，可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果，工作液请现配现用！
6、如不确定怎么将母液配置成体内动物实验的工作液，请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
